Quick Specifications
Working Height
17.1m 56ft
Platform Height
15.1m 49ft 6in
Working Outreach
8.7m 28ft 6in
Safe Working Load
200kg 440lbs500lbs
Minimum Weight
2750kg 6000lbs
Full Specifications
Complete technical data for the SD50 4x4.

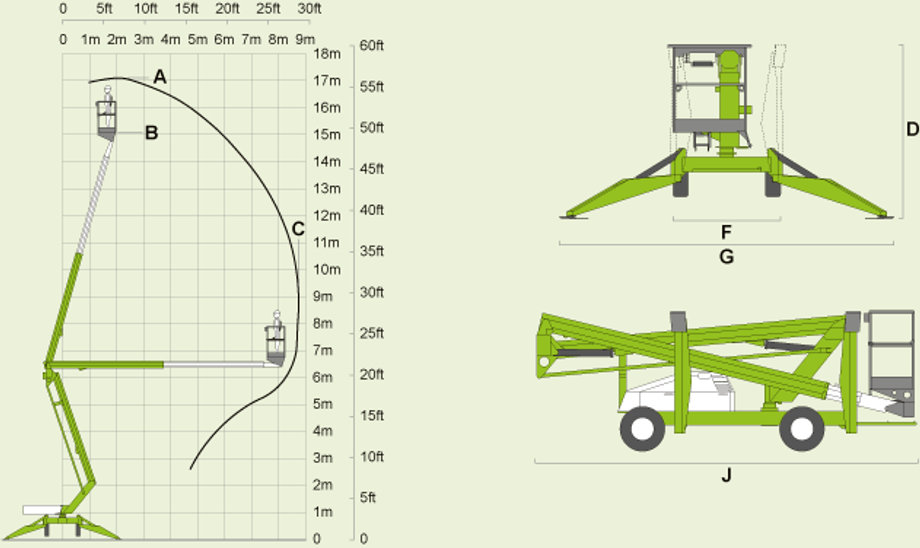

Working Height (A)
17.1m 56ft
Working Outreach (C)
8.7m 28ft 6in
Platform Height (B)
15.1m 49ft 6in
Machine Width (F)
1.6m 5ft 3in
Machine Height (D)
2.2m 7ft 3in
Machine Length (J)
5.6m 18ft 4in
Working Width (G)
4.4m 14ft 5in
Travel Speed
8.3km/h 5.2mph
Gradeability
30%
Gradeability
17°
Turning Radius
5.2m 17ft
Minimum Weight
2750kg 6000lbs
Safe Working Load
200kg 440lbs 500lbs
Basket Rotation
100°
Basket Width
1.1m 3ft 7in
Basket Depth
0.65m 2ft 2in
Power Options
Key Features
Engineered for performance and safety, these key features help you work smarter and more efficiently at height.
Common Applications
Versatile in use, these common applications show where this Niftylift performs best.
Downloads and Enquiries
Download key documents and contact our team for expert guidance on choosing the right platform.
Spec Sheet
PDF Download
Range Booklet
PDF Download
Call Us
+44 1908 223456
Ready to get a quote?
Speak to a member of our team about the SD50 4x4 or any other Self Drive machine.
Inquire NowFrequently Asked Questions
Get quick answers to the questions we’re asked most often about Niftylift platforms.
