Quick Specifications
Working Height
17m 56ft
Platform Height
15m 49ft 6in
Working Outreach
9.7m 32ft
Safe Working Load
225kg 500lbs500lbs
Minimum Weight
7780(E)/7650(H) kg 17155(E)/16870(H) lbs
Full Specifications
Complete technical data for the HR17N.

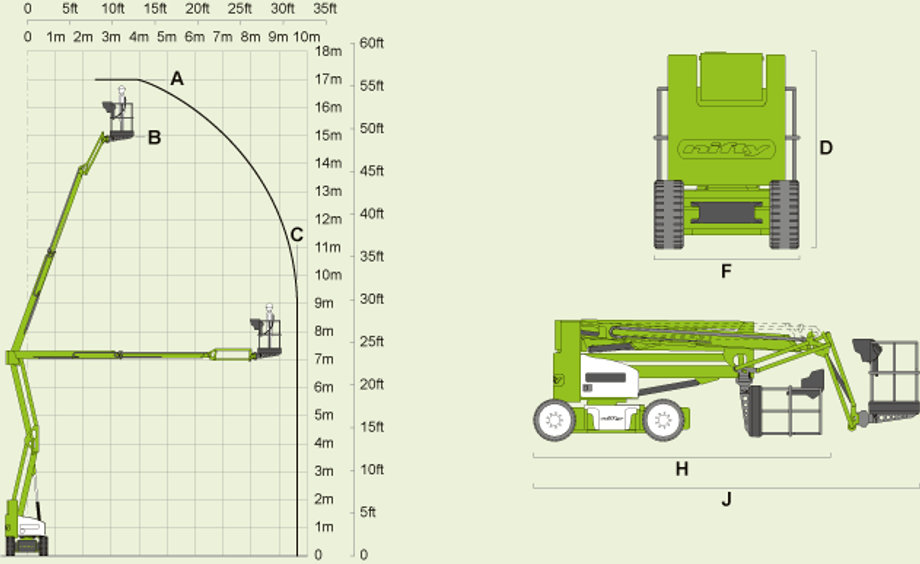

Working Height (A)
17m 56ft
Working Outreach (C)
9.7m 32ft
Platform Height (B)
15m 49ft 6in
Machine Width (F)
1.5m 4ft 11in
Machine Height (D)
1.99m 6ft 6in
Machine Length (J)
6.4m 21ft
Transport Length (H)
4.93m 16ft 2in
Travel Speed
3.5km/h 2.2mph
Gradeability
25%
Gradeability
14°
Turning Radius
3.5m 11ft 6in
Minimum Weight
7780(E)/7650(H) kg 17155(E)/16870(H) lbs
Safe Working Load
225kg 500lbs 500lbs
Fly Boom Arc
150°
Cage Rotation
180°
Cage Width
1.5m 4ft 11in
Cage Depth
0.8m 2ft 8in

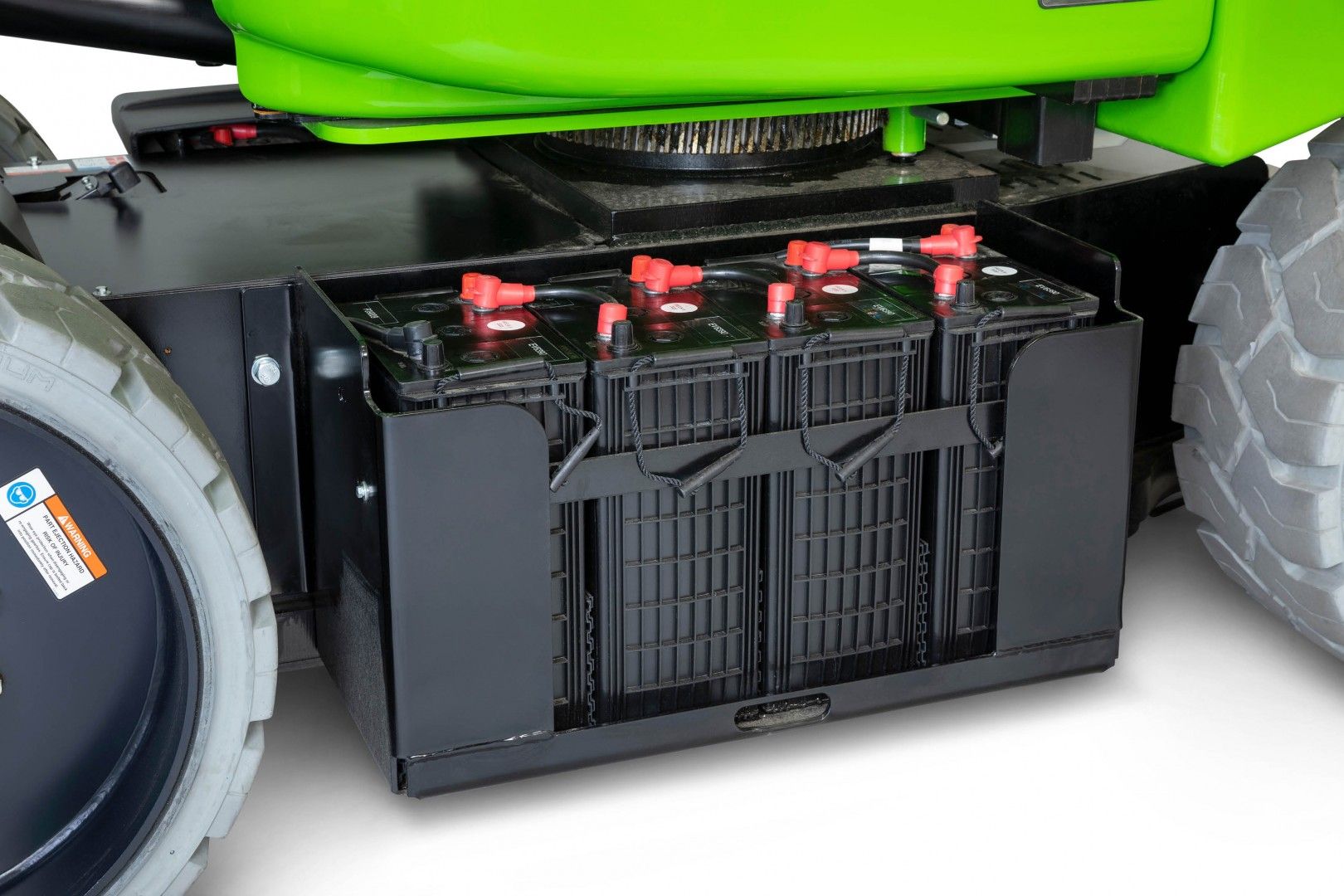

Power Options
Key Features
Engineered for performance and safety, these key features help you work smarter and more efficiently at height.
Common Applications
Versatile in use, these common applications show where this Niftylift performs best.
Downloads and Enquiries
Download key documents and contact our team for expert guidance on choosing the right platform.
Spec Sheet
PDF Download
Range Booklet
PDF Download
Call Us
+44 1908 223456
Ready to get a quote?
Speak to a member of our team about the HR17N or any other Self Propelled machine.
