Quick Specifications
Working Height
12.65m 42ft
Platform Height
10.65m 35ft
Working Outreach
6.1m 20ft
Safe Working Load
200kg 440lbs500lbs
Minimum Weight
2260kg 4980lbs
Full Specifications
Complete technical data for the SD120T 4x4.

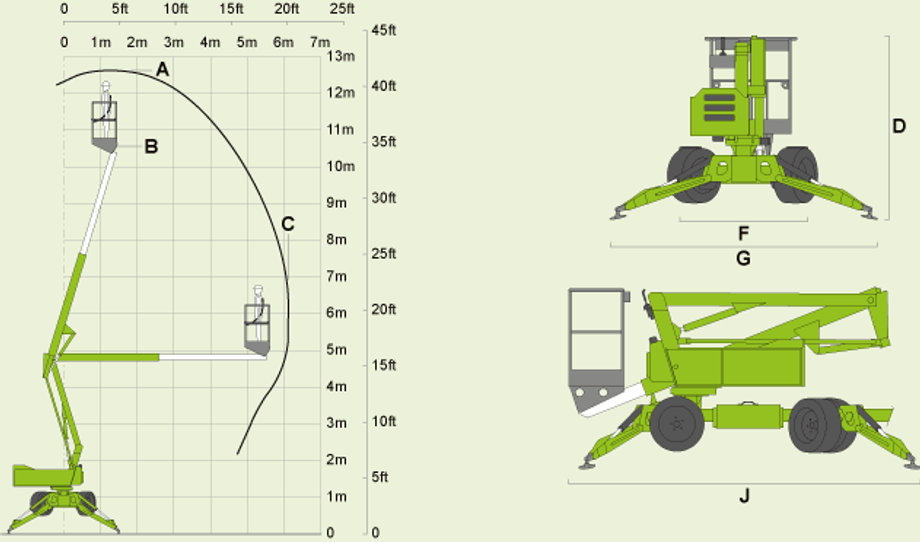

Working Height (A)
12.65m 42ft
Working Outreach (C)
6.1m 20ft
Platform Height (B)
10.65m 35ft
Machine Width (F)
1.56m 5ft 1in
Machine Height (D)
1.95m 6ft 5in
Machine Length (J)
3.9m 12ft 10in
Working Width (G)
3.2m 10ft 6in
Travel Speed
5.8km/h 3.6mph
Gradeability
45%
Gradeability
24°
Turning Radius
3.9m 12ft 10in
Minimum Weight
2260kg 4980lbs
Safe Working Load
200kg 440lbs 500lbs
Cage Width
1.1m 3ft 7in
Cage Depth
0.65m 2ft 2in
Power Options
